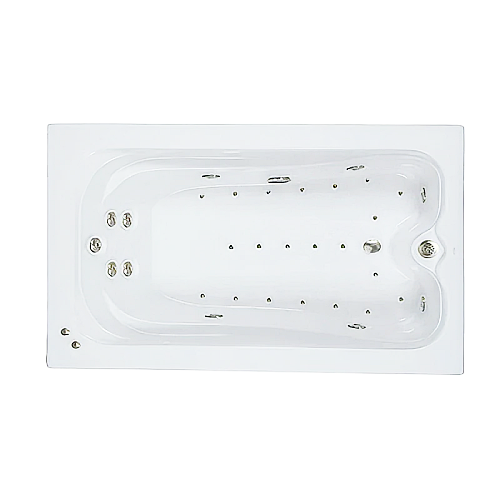

60" x 42" Elite Whirlpool and Air Combination Bathtub

Features

• Tub is shown in optional jet/ trim packages. Comes standard in color of the tub
• 11 hydrotherapy spa jets, fully adjustable for pressure and direction
• 2-speed 9 AMP pump with cushioned mounts to minimize sound
• Variable-speed, 9.5 AMP heated air blower
• 17 air injectors with built-in check valves to prevent water from entering the air lines
• Automatic purge cycle activates 20 minutes after the blower shuts off to evaporate remaining moisture in the manifold and air lines
• Code-compliant rigid PVC drains 100% to keep your bath clean and sanitary after every use
• Scratch-resistant, 0.125 in. thick, non-porous high-gloss acrylic that’s easy to clean and won’t fade or discolor
• Galvanized steel-reinforced base for exceptional structural integrity and long-term durability
• Optional heater, tub skirt and jet trim available
• Safe to use with bath oils, bubbles, and salts - won’t damage jets, pumps, or internal plumbing
• LIFETIME WARRANTY
• Slip-resistant textured floor provides added safety and grip without compromising comfort or style
• Reversible Drain (left- or right-hand drain)

Specifications

• Dimensions: 60 in. x 42 in.
• Water capacity: varies according to size of bather
• Shipping weight: 150 lbs.
• Standard pump location is at the opposite end of the drain. For custom pump placement, please call WaterTech at 800-289-8827

6042 ELITE SPECIFICATION SHEET

INSTALLATION GUIDE
