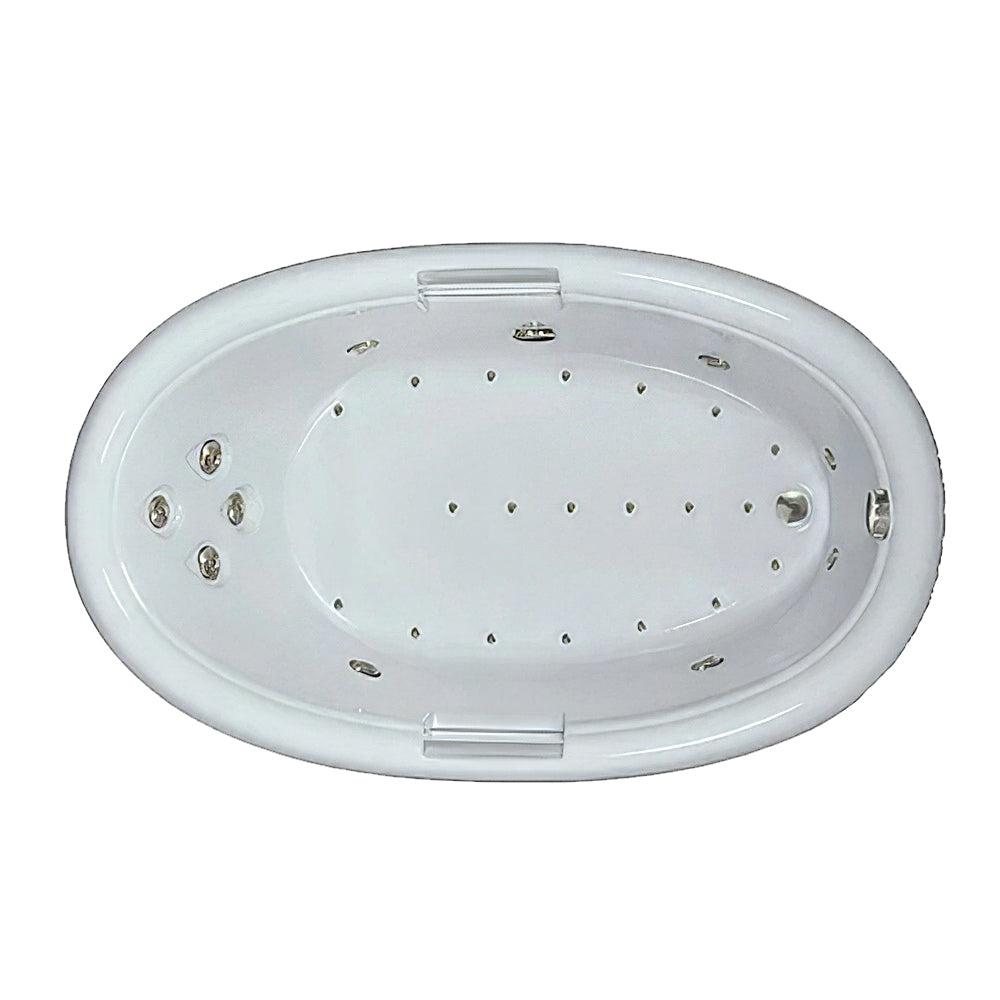

C7242 EW Whirlpool and Air Bath Combination Tub

Features

• 10 hydrotherapy jets, fully adjustable for pressure and direction
• Fully adjustable 9 amp whirlpool pump (upgrade available – see accessories)
• Equipped with rubber cushioned motor mounts to minimize sound
• Whirlpool plumbed with rigid schedule 40 PVC
• 19 air injectors with built in check valves to keep water from entering air lines
• Variable speed 8 amp heated air blower
• Scratch resistant, non-porous .125 in. thick Acrylic. Thickest in the industry
• Galvanized steel reinforced tub base
• Optional Heater available (see Accessories)
• WaterTECH promotes the use of bath oils, bubble bath, and other bath products
• LIFETIME WARRANTY
• Molded in Texture, slip resistant tub floor for added safety
• Automatic purge cycle 20 minutes after blower is turned off evaporates remaining moisture in manifold and air lines
• Reversible Drain

Specifications

• Dimensions: 72 in. x 42 in.
• Standard pump and blower location opposite end of the drain (if custom pump location is needed call WaterTECH at 800-289-8827)
• Water capacity: varies according to size of bather
• Shipping weight: 160 lbs.
