6032PTB Whirlpool Bath

Features

• 1 factory installed variable speed pump - 13 Amp, 120Volt (Lifetime Warranty)
• A variable speed 300 Watt Blower Heater–6.8A, 120Volt (Lifetime Warranty)
• In-Line water heater - 1.5 KW, 12.5A, 120Volt
• Ozonator - 1A, 120Volt

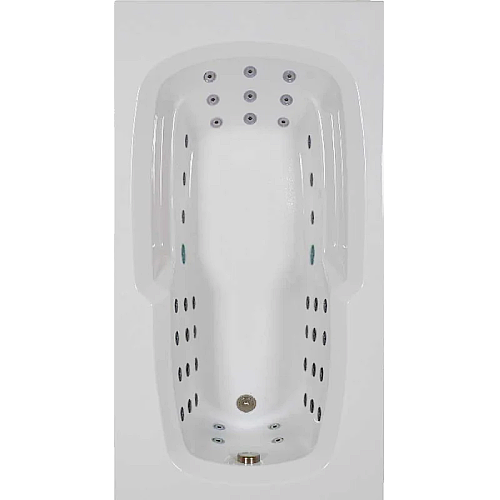

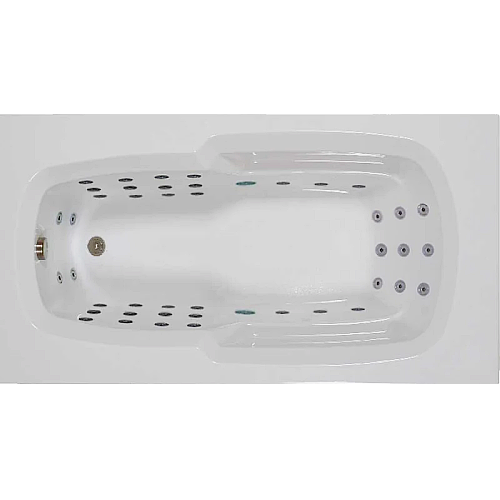

• 43 Hydrotherapy Jets (White Finish comes standard, Optional finishes available)
• Two 3 Speed pump controllers (low-medium-high)
• Material: Acrylic (Durable scratch resistant surface)(Lifetime Warranty)
• Waterlines are rigid PV pipe (No flex hose)

Specifications

• Dimensions: 60 in x 32 in.

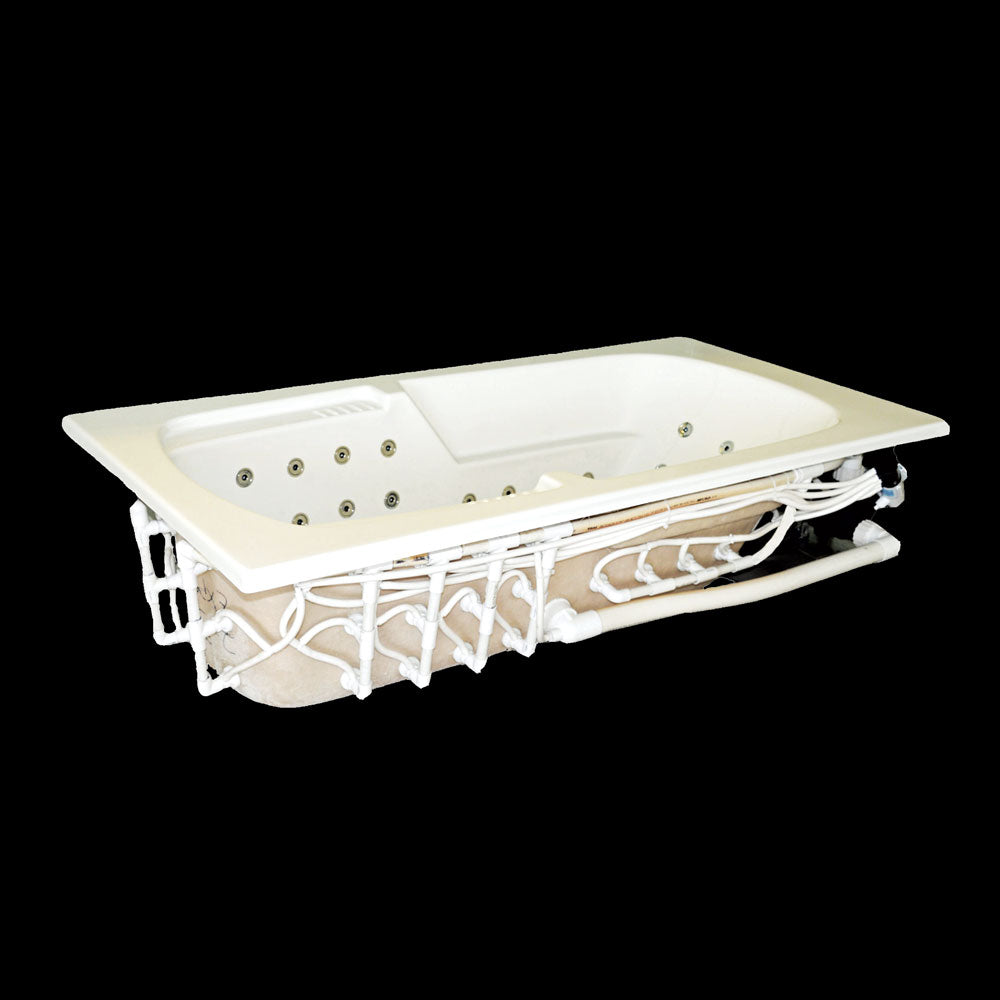

• Note on the 6032PTB the pipes protrude past the foot print of the tub
• Water Capacity: varies according to size of bather.
• Shipping weight: 150 lbs.

Physical therapy tubs may require additional space beyond its top perimeter for installation. ALWAYS measure tub before building tub cabinet.

6032PTB Specification Sheet

INSTALLATION GUIDE
